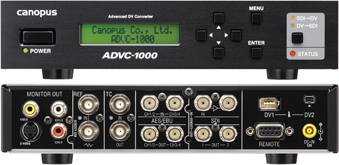

Digital Video Input/Output (DV)
|
>> |
1 x 4-pin FireWire
|
|
1 x 6-pin FireWire |
Digital Video Input (SDI)
|
>> |
2 x BNC (SDI and Active Through, SMPTE 259M-C)
|
Digital Video Output (SDI)
|
>> |
2 x BNC (SDI, SMPTE 259M-C)
|
Analog Video Output (For monitoring)
|
|
1 x S - Video (4-pin miniDIN)
|
|
1 x composite video (RCA)
|
Digital Audio Input
|
SDI |
|
Embedded audio (SMPTE 272M-A, 20-bit/48kHz, locked)
|
|
4-channel input support
For SDI - DV (2ch): ch1/2 or ch3/4 (choose either)
For SDI - DV (4ch): converts ch1~ch4 to
32kHz/12-bit/ch1~ch4
|
AES/EBU |
>> |
2 x BNC (channel 1/2, channel 3/4) |
>> |
32kHz, 44.1kHz, 48kHz, 16-bit, 20-bit, 24-bit unlocked/locked |
DV |
>> |
32kHz, 44.1kHz, 48KHz, 16bit, 2-channel unlocked/locked |
>> |
32kHz, 12-bit, 4-channel unlocked/locked |
Digital Audio Output
|
SDI |
>> |
Embedded audio (SMPTE 272M-A, 20bit/48kHz, locked) |
>> |
4-channel output support
For DV (48kHz/2-channel) - SDI conversion, a copy of channel 1/2 is output to channel 3/4 |
AES/EBU |
>> |
2 x BNC (channel 1/2, channel 3/4) |
>> |
48kHz (locked) or AES input through |
|
>> |
48kHz, 16-bit, 2-channel locked |
>> |
32kHz, 12-bit, 4-channel locked |
Analog Audio Output (for Monitoring)
|
>> |
2 x RCA (unbalanced)
Select output channel: channel 1/2, channel 3/, channel 1+3/2+4 mix or
1+2+3+4 mix |
Timecode
|
>> |
1 x BNC LTC input |
>> |
1 x BNC LTC output |
>> |
VITC input (decoded from SDI input) |
>> |
VITC output (encoded in SDI output, line selection available) |
|
>> |
2 x BNC B.B. input (input and loop thru, automatic 75 Ohm ON/OFF) |
| >> |
SDI output available by REF sync |
Device Control
|
|
1 x D-SUB 9-pin (female) RS422A
AV/C - RS422A command conversion feature
|
|
|
DC-12V, 1.2A (AC adapter)
|
|
>> |
Width 215mm x Depth 240mm x Height 44mm
|
